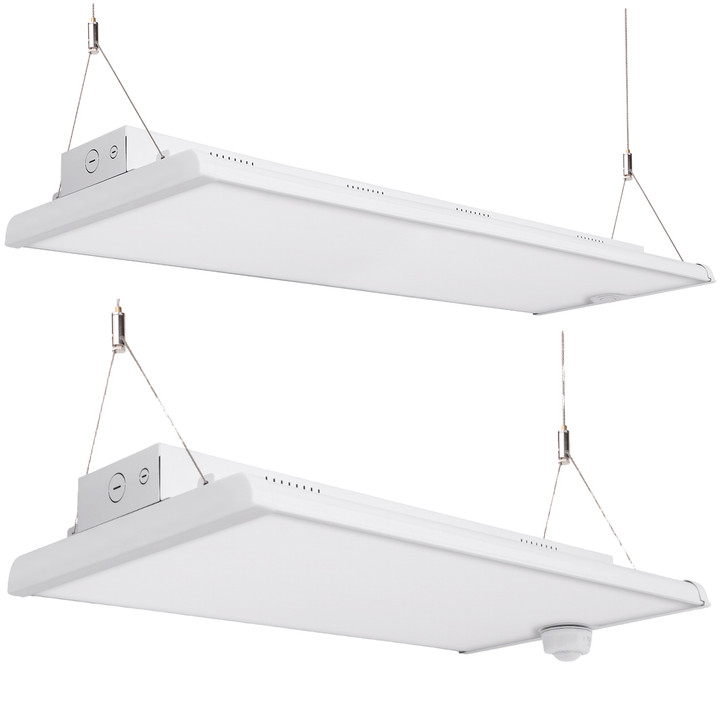

LED Linear High Bay Light - Series XD2 - Selectable Wattage - CCT Tunable (4000/5000K) - Sold in Multiples of 2
$149.99
$97.99
(You save $52.00)
Free Standard Shipping
on commercial lighting orders over $299! *Cont. US Only
on commercial lighting orders over $299! *Cont. US Only
- Brand:
- No Label
- SKU:
- LHBXD80VW-2VK*
- Availability:
- US Stock - Usually ships in 3 business days
- Dimmable:
- 0-10V Dimmable
- Certifications:
- UL, FCC, DLC Premium, IP20
- Warranty:
- 5 Years
- Spec Sheet:
- Type HB Linear High Bay Specifications
Product Details
Product Overview
Upgrade your lighting with the Series XD Low Wattage model – where compact design meets premium performance
Designed for efficiency and precision, the low wattage model of the Series XD Linear High Bay Light delivers powerful performance in a compact form. Ideal for smaller industrial spaces, retail environments, and facilities seeking top-tier energy savings, this fixture combines advanced features with DLC Premium certification for maximum rebate eligibility and reliability.
Key Features:- Selectable Wattage: Fine-tune your lighting with three adjustable power levels, optimizing energy use without compromising brightness.
- Tunable CCT: Switch between 4000K and 5000K color temperatures to match your environment’s needs.
- High Efficiency: Achieves up to 150 lumens per watt, offering brilliant illumination with reduced energy costs.
- Superior Color Rendering: CRI of Ra 80 ensures accurate and vibrant color representation.
- 0-10V Dimming: Enables smooth dimming for enhanced ambiance and energy control.
- Motion Sensor Ready: Pre-installed 3-pin base allows for easy integration of motion sensors for smart automation.
- Wide Beam Angle: 120° beam spread ensures consistent, uniform light coverage.
- DLC Premium Listed: Meets the highest standards for energy efficiency and performance, qualifying for enhanced utility rebates.
***Must purchase in multiples of 2***
The XD2 model offers three selectable wattage options:- LHBXD80VW-2VK: 80W = 12,000LM / 90W = 13,500LM / 105W = 15,750LM
Certifications
Downloads
Specifications
| Input Voltage: | AC 120-277V |
| Input Wattage: | Selectable - 80W/90W/105W |
| Equivalent: | 250W-400W HID/MH |
| Lumen Output: | 12,000/13,500/15,7500 (5000K) |
| CCT Tunable: | 4000K/5000K |
| Beam Angle: | 120° |
| Efficacy: | 150 LM/W |
| Power Factor: | >0.95 |
| Lifetime: | >50,000 Hours |
| Dimmable: | 0-10V |
| IP Rating: | IP20 |
| CRI: | >80 |
| Operating Temp: | -40°F-113°F |
| Mounting: | Suspension Chain |
| Lens: | Frosted Diffuser Lens |
| Dimensions: | 23.23”L x 12.60”W x 2.95”H |
| Certifications: | DLC Premium, UL, FCC, RoHS certified |
| Warranty: | 5 Years | Recommended ceiling heights: | 15 Feet - 40 Feet |
