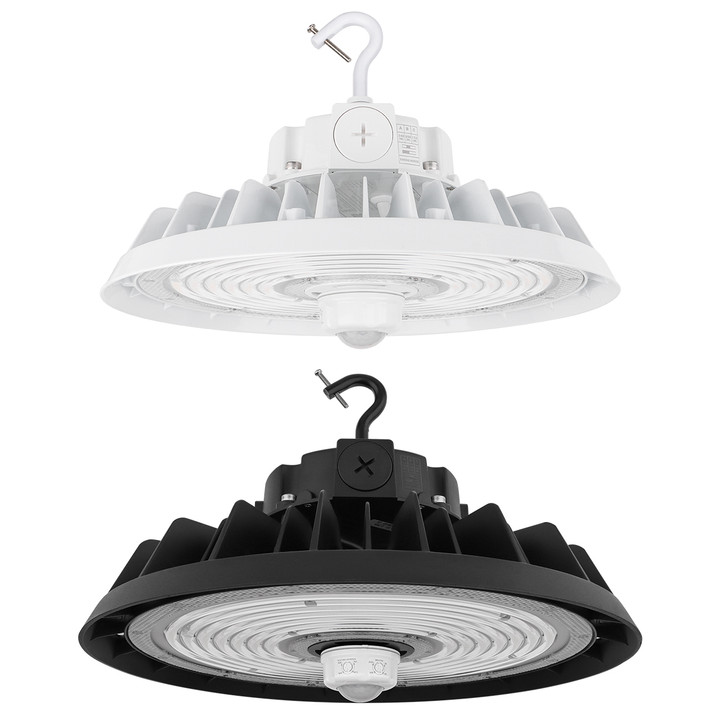

LED UFO High Bay Light - Series XBG - Selectable Wattage (80W-320W) - 46,500 Lumens Max - Tunable CCT (4000/5000K)
on commercial lighting orders over $299! *Cont. US Only
- Availability:
- US Stock - Usually ships in 3 business days
- Dimmable:
- 0-10V Dimmable
- Certifications:
- UL, FCC, DLC Premium, RoHS, IP65
- Warranty:
- 5 Years
- Spec Sheet:
- Series XBG LED UFO High Bay Specifications
Product Overview
LED UFO High Bays represent a cutting-edge advancement in industrial lighting solutions. These high-performance fixtures are meticulously engineered to provide unparalleled illumination in large, high-ceiling environments, making them an ideal choice for warehouses, factories, gymnasiums, and other expansive spaces. Characterized by their sleek, saucer-like design, our Series XBG UFO High Bays are not only functional but also aesthetically pleasing, seamlessly integrating into various architectural settings.
Equipped with state-of-the-art LED technology, they deliver brilliant, uniform lighting while significantly reducing energy consumption, making them an eco-conscious choice. Their durable construction and robust materials ensure longevity and reliability, even in demanding industrial settings. With customizable options for wattage, beam angles, and mounting configurations, UFO High Bays offer versatile solutions tailored to specific lighting needs. These fixtures exemplify the perfect blend of innovation, efficiency, and durability, setting a new standard for high-ceiling illumination in industrial applications.
In field selectable options for our UFO LED lights represent a significant advancement in lighting flexibility and energy efficiency. The ability to select wattage and color temperature on site allows users to adjust the power consumption, light output, and light color of their UFO LED lights according to specific requirements. By simply toggling a switch one can select different wattage settings, enabling the light to operate at various intensities. Another switch operates the CCT Tunable options and the user can choose between 4000K and 5000K. Such versatility is particularly beneficial in environments where light demands might fluctuate, ensuring optimal illumination while conserving energy. Moreover, the capacity to adjust wattage not only prolongs the lifespan of the light by preventing unnecessary overuse but also contributes to reduced electricity bills, emphasizing the sustainable aspects of modern LED technology.
Our Series XBG UFO high bay is available in four different selectable wattage ranges:- UHBXBG80VW-VKB: 80W = 12,000 / 100W = 15,000LM /150W = 22,500LM
- UHBXBG100VW-VKB: 100W = 15,000LM / 150W = 22,500LM / 200W = 30,000LM
- UHBXBG150VW-VKB: 150W = 22,500 LM / 200W = 30,000LM / 240W = 36,000LM
- UHBXBG200VW-VKB: 200W = 30,000 LM / 240W = 36,000LM / 320W = 48,000LM
- Sleek Integrated design
- 6KV surge protection
- IP65 waterproof rating, dust, corrosion, & pressure proof
- Additional Options: emergency backup and motion sensor
- 0-10V dimming capability, built-in sensing dimming function
- DLC Premium, UL, CE, RoHs, SAA, VEET, IPART certified
- 5 year warranty
Certifications
Downloads
Specifications
Input Voltage: | AC 120-277V |
Input Wattage: |
Selectable - 80W/100W/150W Selectable - 100W/150W/200W Selectable - 150W/200W/240W Selectable - 200W/240W/320W |
Equivalent: |
250-400W HID/MH 1000W HID/MH 400W-600W HID/MH |
Lumen Output: |
12,000/15,000/22,500 (5000K) 15,000/22,500/30,000 (5000K) 22,500/30,000/36,000 (5000K) 30,000/36,000/48,000 (5000K) |
CCT: | 4000K/5000K |
Beam Angle: | 120° |
Efficacy: | 150 LM/W |
Power Factor: | >0.80 |
Lifetime: | >50,000 Hours |
Dimmable: | 0-10V |
IP Rating: | IP65 |
CRI: | >80 |
Operating Temp: | -40°F-122°F |
Mounting: | G-Hook Included, Optional Trunnion Mounting Bracket (sold separately) |
Diameter: | 10.83"/12.01"/13.8 |
Certifications: | UL, DLC Premium, NLC |
Warranty: | 5 Years | Additional Options: | Emergency Backup and Motion Sensor |
Motion Sensor Specifications
Control: | ON/OFF,0-10V Dimming |
Setting Tools: | Rotating Switch or Remote Control |
Detection Area: | Remote Control: 25%/50%/75%/100% |
Hold Time: | Remote Control: 5s/30s/1min/3min/5min/10min/20min/30min Rotating Switch: 5s/1min/5min/10min |
Stand-By Period: | Remote Control: 0s/10s/30s/1min/5min/10min/30min/+∞ |
Stand-By Dimming Level: | Remote Control: 10%/20%/30%/50% Rotating switch: 0%/10%/30%/50% |
Input Range: | 12V DC |
Daylight Threshold: | Remote Control: Disable + 11 Settings from 2LUX - 400LUX |
Operating Voltage: | 10-15V DC |
Detection Range: | 9FT |
Mounting Height: | 39FT |
IP Rating: | IP65 |
