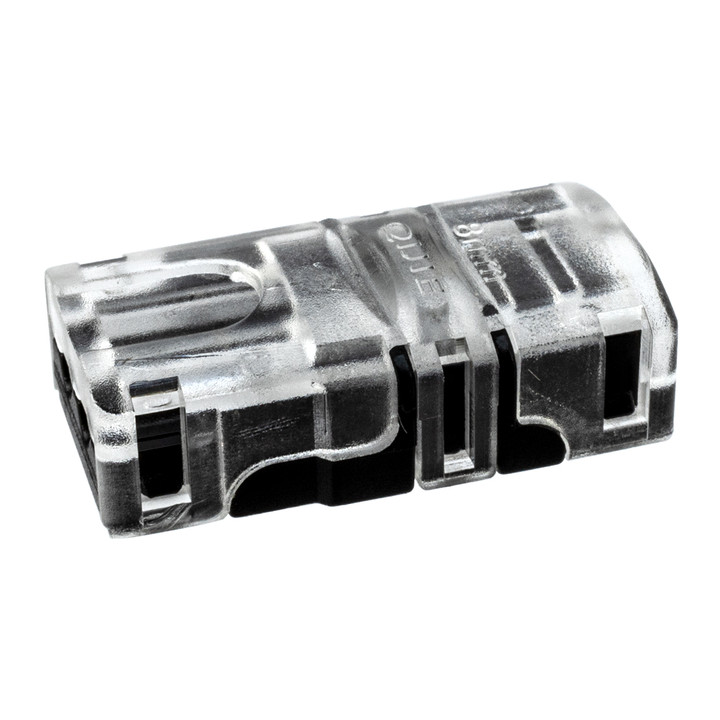

12/24 Volt LED Strip Light Hippo Power Connector (SMD-3528)
SKU: STRP1235A-*HCON
$2.99
$2.49
(You save $0.50)
Product Details
Related Products
No Label
12/24 Volt LED Strip Light Hippo Splice (SMD-3528)
$2.99
As low as
$2.49
Brilliant Brand Lighting
12/24 Volt LED Strip Light Power Connector (SMD-3528)
$3.89
As low as
$2.99
No Label
12/24 Volt LED Strip Light Y Connector (SMD-3528)
$4.99
$3.99
No Label
12 Volt LED Strip Light Hippo Power Connector (SMD-5050)
$2.99
As low as
$2.49
Brilliant Brand Lighting
12/24 Volt LED Strip Light Jumper Connector (SMD-3528)
As low as
$2.99
Product Overview
Quickly and easily attach almost any length of 2-wire or 4-wire to your strip lights – perfect for making custom length power connectors to reach distant power supplies and controllers. Or connect a second connector to your wire to make custom length strip light jumpers. 5A max amperage.
Features:- No need to strip wires
- No need to remove strip light waterproofing
- Clear cover won’t mask any light
- Hippo connectors securely grip the strip light and wires, so they won’t come loose
NOTE:
- While these connectors can be removed easily, repeated disassembly and installation may fatigue the clip tabs causing them to break.
Specifications
| Compatible Wire Gauge: | 18-22 AWG |
| Compatible Wire Cross Sectional Area: | 0.34-0.75 mm² |
| Compatible Wire OD: | 2.1 mm Max |
| Max LED Quantity: | 30-90 LEDs/Meter |
| Minimum Strip Thickness: | >0.2 mm |
| Working Voltage: | DC3V~24V |
| Rated Current: | 5 Amps |
| Pin Material: | Phosphor Copper (Cu) |
| Housing Material: | Polycarbonate (PC) |
| Housing Color (cover/base): | Transparent / Black |
| Flame Retardant Level: | UL94v-0 |
